TABOCAB® COMPOUNDS
High-performance thermoplastic HFFR and XLPE compounds for cable insulation and sheathing
What are you looking for?
DESIGNED FOR
- Extrusion
Description
TABOCAB® cable compounds excel in providing superior solutions for low voltage applications suitable for construction, automotive, railway, industrial cables, solar cables and cables for devices producing energy from renewable sources.
Our comprehensive portfolio encompasses Sioplas cross-linkable compounds (XLPE), thermoplastic and cross-linkable HFFR compounds (LSF0H/HFFR; XLPE HFFR), as well as stabilization packages and catalyst masterbatches.
We have successfully offered high-grade PE-Xb on the pipe and cable market under the TABOREX® brand name since 1994. Since 2017, when we invested in high-end technology, we have been successfully supplying compounds to the cable market under its own TABOCAB® brand.
Our compounds stand out as the optimal choice for manufacturing power, renewable energy, control, signal and communication cables, in addition to automotive and e-mobility cables.
Benefits
What are the advantages of XLPE and HFFR TABOCAB® compounds?
XLPE provides a very low loss factor, a low dielectric constant and excellent insulation properties
— suitable for data and communication cables
XLPE has a high dielectric strength in combination with superior low-temperature flexibility
— suitable for automotive and railway applications
XLPE allows service temperatures up to 125°C and short-term maximum peak temperatures above 200°C without the danger of hydrochloric acid being released, as is the case in PVC
— suitable for solar cables
XLPE shows generally good chemical resistance to acids, organics and mineral oils. Due to its low water uptake, XLPE does not show the treeing effect like polar polymers
— suitable for power distribution cables
XLPE, in combination with LSF0H/HFFR jacketing, can be used in safety cable applications. LSF0H/HFFR materials have the same performance as standard halogenated materials without showing smoke, high toxicity or corrosiveness of fumes. These factors are the most critical, as lives can be saved in case of fire
— suitable for safety cable applications

Good processing properties

Excellent fire retardancy performance

Customized products

TPO solutions available

Produced on high-end buss technology

Excellent dielectric properties

High-speed production

Lower compound weight

Suitable for thin-wall applications

Recycled compounds offered
Cable applications
TABOCAB® brand materials are highly sought-after for insulating and sheathing various types of cables, including power, control, signal, and communication cables across many industries.
- Automotive and railway
- Renewable energy
- Construction
- Industry
- Solar cables
- Fire-resistant cables
- Cables from recycled compounds
Automotive and railway
Our activities cover solutions for upcoming cable products and comply with the current standards and requirements of ISO 6722 in automotive under-the-hood applications and EN 45545 in railway cabin and safety applications. The TABOCAB® product portfolio in this segment is suitable for:
AUTOMOTIVE
- single-core/multi core T3 cables
- LSF0H/HFFR cables
RAILWAY
- LV power, signalling, communication cables for vehicles, tunnels and ground

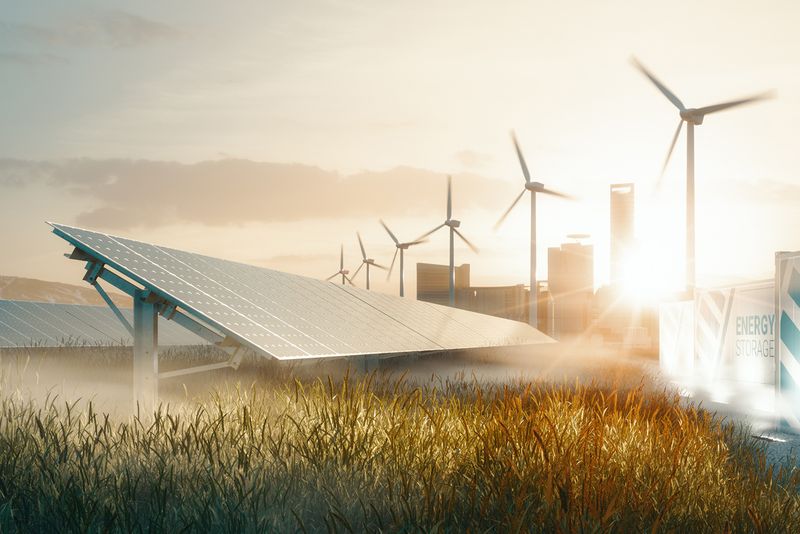

Renewable energy
For this sector, SILON can offer XLPE insulation and the XL HFFR jacket compound, both ambient-cured and designed for photovoltaic and grid connection cables of up to 1.5 kV, with a service temperature of -40 to +90°C and extended service life (20 000 h at 120°C).
These products conform to:
- EN 50618
- IEC 62930
- EN 60332-1-2

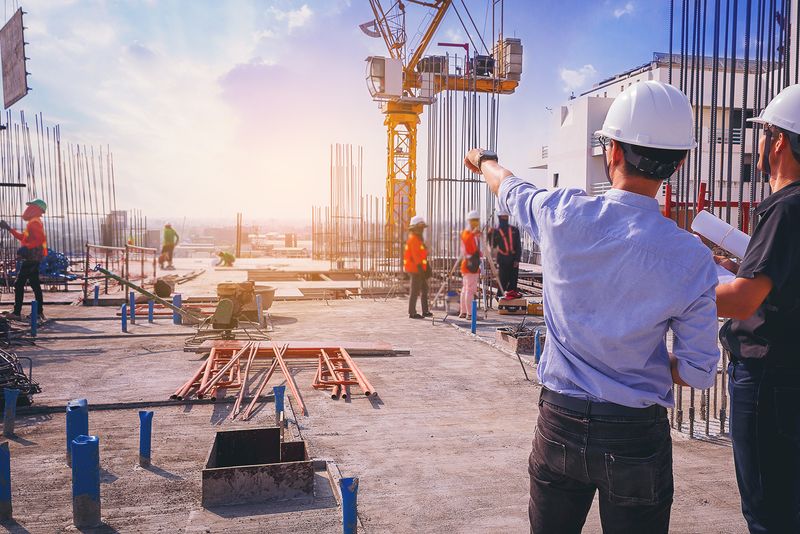

Construction
We can offer a unique combination of easy process moisture-cured HFFR XLPE insulation and sheathing of TPO-based compounds specifically designed for LSF0H/HFFR low-voltage power cables up to 1 kV and operating temperatures of up to 90°C.
Our solutions comply with the VDE, EN, BS, IEC standards.
Fire-resistant cables according to CPR.

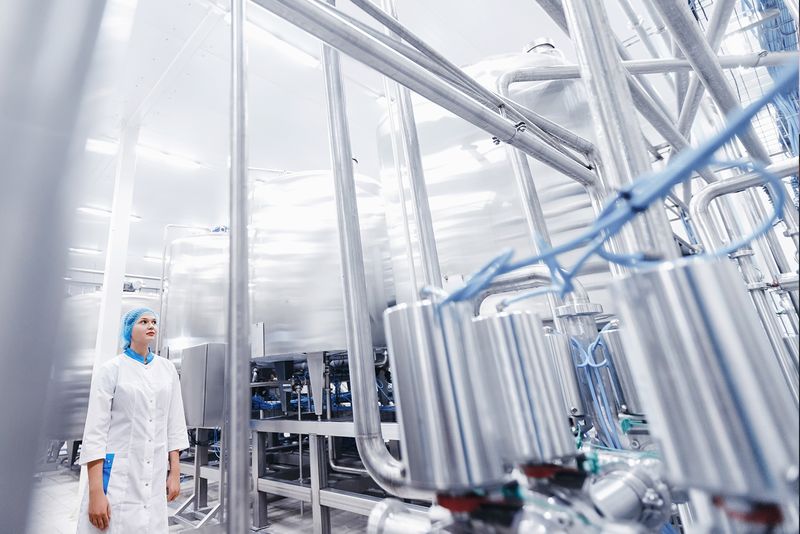

Industry
TABOCAB® cable compounds are designed to provide excellent service, long-term reliability and resistance to industrial and environmental abuse, including extreme temperatures, abrasion, impacts, tension, flexing or chemicals.
TABOCAB® compounds can be used in:
- instrumentation cables
- flexible control and power cables up to 3 kV
- power cables
- medium voltage cables 10-50 kV
Solar cables
TABOCAB® cross-linkable compounds TABOCAB® SXI 008 and TABOCAB® SXG 011 are specially developed compounds for solar cable insulation and sheathing. Thanks to their durability, resistance to UV and chemicals, flexibility and outstanding dielectric and flame retardant properties, they are suitable for both indoor and outdoor installations.
TABOCAB® solar compounds
TABOCAB® XLPE insulation and HFFR XLPE jacket compounds are produced by Sioplas technology, both moisture-cured and designed for photovoltaic and grid connection cables of up to 2 kV, with a service temperature of -40 to +90°C and extended service life (20 000 h at 120°C).
Typical application and advantages
Cable sheathing and insulation for photovoltaic cables in the construction of H1Z2Z2-K and in cables requiring EI 5 (EN 50363-5) compounds. The main advantages are excellent fire retardancy, easy processability, long life, flexibility, punch resistance, UV stability, lower weight, and production speed.
TABOCAB® solar cable compounds comply with:
EN 50618, IEC 62930, EN 60332-1-2
For both compounds, SILON offers suitable catalyst masterbatches.
TABOCAB® SXI 008: TABOCAB® CM 009 = 94 : 6 %
TABOCAB® SXG 011: TABOCAB® CM 010 = 95 : 5 %

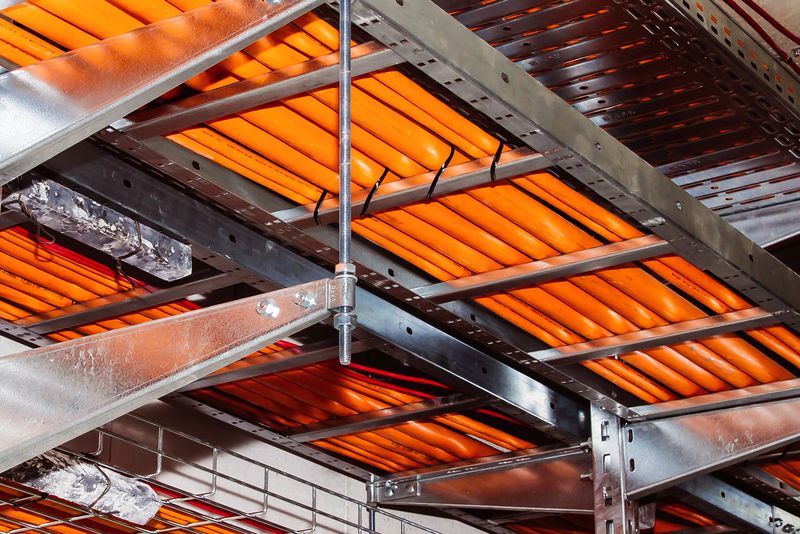

Fire-resistant cables
The TABOCAB® LSZH/HFFR product family is designed for sheathing and insulation of CPR harmonised power, control and signal cables used in public buildings and areas with high demands on safety and prolonged operation under fire, as well as in e-mobility offering solutions for electric vehicle charging cables.
Typical applications:
NHXH FE 180/E30 – E90, N2XH B2Ca, JE-H(St)H FE180/E30 – E90
Electric vehicle charging cables
Advantages:
General Purpose / UV Stabilised / High Processability / High Fire Resistance
Properties comply with:
IEC 60092-359 SHF1; IEC 60502-1 ST8; EN50363-7 TI6, TI7; EN 50363-8 TM7; VDE 0207/24 HM2, HM4; VDE 0250/215 HM5; EN 62196-1

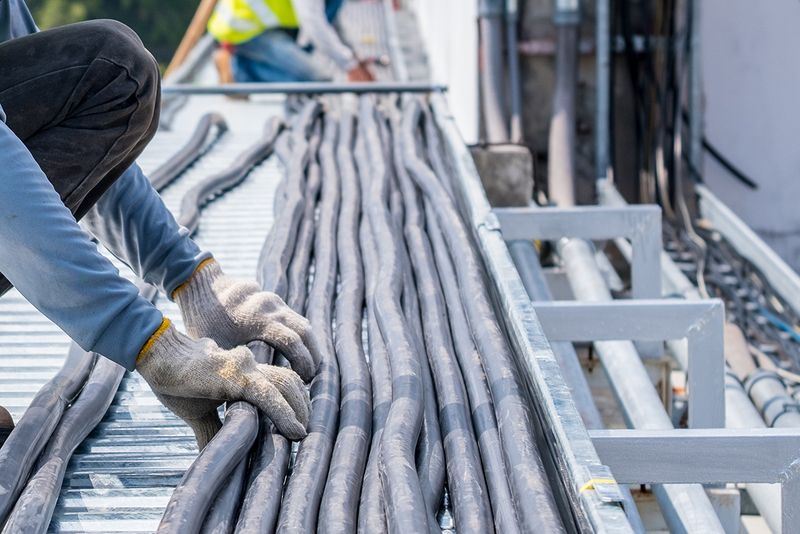

Cables from recycled compounds
Our TABOCAB® TPS 908 material is a UV-stabilised HDPE-based jacketing compound available in black colour.
Typical application:
sheathing of power, communication and optical cables
Properties comply with:
DIN VDE 0276 620, type DMP 2, IEC 60502 part 2 type ST 7, HD 620 S2, DIN VDE 0207 type 2YM3, EN 50290-2-24, HD 603 S1 DMP 1, 2, 5, 7, 8
The compound is halogen-free, but not flame retardant (CPR fire class Fca). For applications, where Eca CPR classification is required, we can supply the compatible TABOCAB XM 906 flame retardant masterbatch.
TABOCAB® TPS 908 is developed to meet all application requirements, while respecting principles of sustainability. Part of the compound is made of industrial recyclate from high-capacity sources offering stable quality and availability.
The SILON compounding process incorporates other polymers to secure optimal physical and mechanical properties, stabilizing the compound for customer processing conditions and individual requirements.
Search for a product and download TDS
cross-linkable compound |
recycled thermoplastic HFFR compound |
thermoplastic HFFR compound |
insulation |
sheathing |
EVA |
polyethylene |
flame retardant |
low smoke |
UV stability |
aerial bundle cables |
automotive cables |
control cables |
CPR HFFR cables |
energy cables |
MV distribution cables |
optical cables |
solar cables |
TABOCAB CM 005 |
TABOCAB CM 007 |
TABOCAB CM 008 |
TABOCAB CM 009 |
TABOCAB CM 010 |
TABOCAB CM 011 |
TABOCAB CM 012 |
TABOCAB CM 013 |
TABOCAB CM 914 |
TABOCAB CM 915 |
Material | Type | Usage | Polymer type | Attribute | Application | TDS | |
---|---|---|---|---|---|---|---|
TABOCAB SXG 010 | cross-linkable compound | insulation / sheathing | polyethylene | aerial bundle cables | Download | ||
TABOCAB SXG 011 | cross-linkable compound | insulation / sheathing | polyethylene | flame retardant / low smoke | solar cables | Download | |
TABOCAB SXI 003 | cross-linkable compound | insulation | polyethylene | control cables | Download | ||
TABOCAB SXI 004 | cross-linkable compound | insulation | polyethylene | control cables | Download | ||
TABOCAB SXI 005 | cross-linkable compound | insulation | polyethylene | control cables | Download | ||
TABOCAB SXI 006 | cross-linkable compound | insulation | polyethylene | automotive cables | Download | ||
TABOCAB SXI 007 | cross-linkable compound | insulation | polyethylene | automotive cables / control cables | Download | ||
TABOCAB SXI 008 | cross-linkable compound | insulation | polyethylene | solar cables | Download | ||
TABOCAB SXI 012 | cross-linkable compound | insulation | polyethylene | signal, control and power cables | Download | ||
TABOCAB TPG 002 | thermoplastic HFFR compound | insulation / sheathing | EVA | flame retardant / low smoke | control cables / optical cables / CPR HFFR cables | Download | |
TABOCAB TPG 003 | thermoplastic HFFR compound | insulation / sheathing | EVA | flame retardant / low smoke | control cables / CPR HFFR cables | Download | |
TABOCAB TPS 004 | thermoplastic HFFR compound | sheathing | EVA | flame retardant / low smoke | optical cables / CPR HFFR cables | Download | |
TABOCAB TPS 908 | recycled thermoplastic HFFR compound |
![]() |
sheathing | polyethylene | UV stability | energy cables / optical cables / MV distribution cables | Download |
masterbatch |
flame retardant |
low smoke |
UV stability |
TABOCAB SXG 010 |
TABOCAB SXG 011 |
TABOCAB SXI 003 |
TABOCAB SXI 004 |
TABOCAB SXI 005 |
TABOCAB SXI 006 |
TABOCAB SXI 007 |
TABOCAB SXI 008 |
TABOCAB TPS 908 |
Material | Type | Attribute | Suitable for compound | TDS |
---|---|---|---|---|
TABOCAB CM 005 | masterbatch | TABOCAB SXI 003, SXI 004, SXI 005, SXG 010 | Download | |
TABOCAB CM 006 | masterbatch | TABOCAB SXI 003, SXI 004, SXI 005 | Download | |
TABOCAB CM 007 | masterbatch | TABOCAB SXI 003, SXI 004, SXI 005, SXI 008 | Download | |
TABOCAB CM 008 | masterbatch | TABOCAB SXI 003, SXI 004, SXI 005 | Download | |
TABOCAB CM 009 | masterbatch | TABOCAB SXI 008 | Download | |
TABOCAB CM 010 | masterbatch | UV stability | TABOCAB SXG 011 | Download |
TABOCAB CM 011 | masterbatch | TABOCAB SXI 007 | Download | |
TABOCAB CM 012 | masterbatch | TABOCAB SXI 006, SXI 007 | Download | |
TABOCAB CM 013 | masterbatch | flame retardant / low smoke | TABOCAB SXI 006, SXI 007 | Download |
TABOCAB CM 020 | masterbatch | TABOCAB SXI 012 | Download | |
TABOCAB CM 914 | masterbatch | UV stability | TABOCAB SXG 010 | Download |
TABOCAB CM 915 | masterbatch | UV stability | TABOCAB SXG 010 | Download |
TABOCAB XM 906 | masterbatch | flame retardant | TABOCAB TPS 908 | Download |
Need technical support? Our technical experts are always ready to help you choose the right product for your application and support you in developing your technical process needs.
Technical support
Testing on our cable line allows us to recommend processing temperatures, define extrusion capabilities and process speed with regard to the strain on the extrusion line motors.
We test the mechanical properties of the product after the extrusion (strength, ductility, shrinkage and surface smoothness). We also test the colourability of our compounds and we can therefore recommend the amount needed to achieve the required product surface colour.
Customer satisfaction is our priority and so we never restrict ourselves to just delivering compounds. Technical support and the correct configuration of the processing mode on the customer’s equipment is a matter of course.
